Black Painted Steel Horse Stall Kits

Painted Steel Standard Stall Packages

 Horse Stall Packages- Stall Fronts

No Lumber is Included

 Includes: door frame, sliding door hardware and your choice: CM80 Grill Sections or CM82 Grills w/feed opening.

 Current Prices

Order Online!

 10 ft. Horse Stall Front Package

 1 each

 $533.00  Add To Cart

 12 ft. Horse Stall Front Package

 1 each

 $600.00 Add To Cart

 14 ft. Horse Stall Front Package

 1 each

 $665.00 Add To Cart

 16 ft. Horse Stall Front Package

 1 each

 $735.00 Add To Cart

 Horse Stall Packages- Grilled Side or Back Walls

No Lumber is Included

 Includes: Grill sections and 2 ea. wall channels

 Current Prices

Order Online!

 10 ft. Grilled Wall Package

 1 each

 $378.00  Add To Cart

 12 ft. Grilled Wall Package

 1 each

 $445.00 Add To Cart

 14 ft. Grilled Wall Package

 1 each

 $513.00 Add To Cart

 16 ft. Grilled Wall Package

 1 each

 $580.00 Add To Cart

(Solid Side or Back Walls Require 2 ea. CM83 Wall Channels) - $36.00

 horse stall kit

Steel Horse Stall Kits
Build or convert your horse stalls into a professional show barn with easy to install, economical, and rugged grill and door panels. Each panel includes a 4 ft. long channel at the top and bottom welded to 34 inch long heavy gauge 5/8" square vertical bars on 4 inch centers.
The door frame is constructed identically and measures 4 ft. wide by 7 ft. high. Vertical side channels allow standard 2 inch lumber (1 1/2 inch thick) to be slid into place and bolted at the bottom. A top board cavity is available for supporting sliding door hangers.

Create custom size horse stalls by selecting the stall components you need or purchase a stall package!



Building or Remodeling?
Using the 4 ft. sections, any size horse stalls can be built (8ft, 10 ft, 12 ft). Also, odd sizes can easily be cut with a standard hacksaw. Example: a 12 ft. horse stall front would require 2 each 4 ft. sections and 1 each 4 x 7 door frame. Removable side stall walls can be made using our 7 ft. long wall channel designed to accept standard 2 inch lumber (1 1/2 inch thick). Great For Foaling Stalls!

 Need help deciding between stall kits or modular horse stalls? Click Here to see the difference.

 1. Typical Requirements for 12' Stall Front
1 ea CM80 Standard Grill
1 ea CM82 Grill with Opening or CM80 Standard Grill
1 ea. CM81 Door Frame Assembly
1 ea CM84 Door Hardware Kit

 2. Side Wall Partitions
2 ea CM83 Wall Channels for each partition.
Use CM80 for ventilated partitions.
(Use 3 Units for 12' Wall).

.

 2. Typical Requirements for 10' Stall Front
Same as 12 ft. except hack saw
1 ea CM80 to 2 ft.


Chose the stall components you need below to build your horse stalls to your specifications.

 stall door

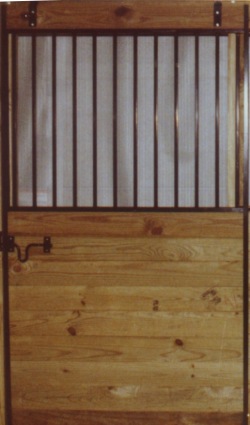

Horse Stall Door- 4ft wide x 7ft high CM 81 (steel framework only, lumber not included) 4 ft. long channel at the top and bottom of the grill welded to 34 inch long heavy gauge 5/8" square vertical bars on 4 inch centers. (latch and hanger brackets available in the sliding door hardware kit below)

Color- Black Only

$175.00 Add To Cart

Click here for assembly instructions

stall door with gossip door

 Horse Stall Door- 4ft wide x 7ft high CM 81SD (steel framework only, lumber not included) 4 ft. long channel at the top and bottom of the grill welded to 34 inch long heavy gauge 5/8 square vertical bars on 4 inch centers.

Same as the door shown above except this door has a swing-down section which creates a "gossip door". (swing down section shown)

Color- Black Only

$275.00 Add To Cart

 stall grill

Horse Stall Grill - 4ft wide x 34in high CM 80. 4 ft. long channel at the top and bottom of the grill welded to 34 inch long heavy gauge 5/8 square vertical bars on 4 inch centers. Top and bottom channels are designed to accept standard 2 inch lumber (1 1/2 inch thick).

Color- Black Only

$135.00 Add To Cart

 stall grill with feed opening

Horse Stall Grill - 4ft wide x 34in high CM 82. 4 ft. long channel at the top and bottom of the grill welded to 34 inch long heavy gauge 5/8 square vertical bars on 4 inch centers. Top and bottom channels are designed to accept standard 2 inch lumber (1 1/2 inch thick). This grill has a feed opening measuring 10" x 10".

Color- Black Only

$135.00 Add To Cart

stall wall channel

7 ft. long wall channel CM83. Removable side stall walls can be made using our 7 ft. long wall channel designed to accept standard 2 inch lumber (1 1/2 inch thick). Attach the wall channels to your support posts or walls and slide the lumber into the channels. Measures 7 ft. long x 1 3/4" wide x 1" deep.

Color- Black Only

$20.00 Add To Cart

 stall edge protector

8 ft. long steel edge protector CM88. (angle steel) Stops destructive chewing on wood. Measures 8 ft. long x 1 1/2" wide both directions. Some people call these chew guards or anti-chewing strips. Other people call these anti-cribbing strips or guards

Color- Black Only

$20.00 Add To Cart

 stall edge cap

8 ft. long steel wall cap CM89. (channel steel) Stops destructive chewing on wood and gives your stall a finished look by capping the edges of the lumber. Fits over standard dimensional cut lumber. Will slide inside of our wall channels CM83 for a great appearance where the wall channel and wall cap come together.

Color- Black Only

$20.00 Add To Cart

 window grills

Window Grills to your specification. Covers grills up to 34in x 48in. Angle iron top and bottom for attachment to your window frames.


Call To Order: 740-694-9926 CM 80W

 horse stall sliding door hardware

Click here for assembly instructions

Sliding Door Hardware Kit CM 84. Consists of door brackets, bottom stay roller assembly, polyethylene roller system for long life and 8 ft section of enclosed-top track to keep dust and material from falling into the rollers and jamming your door.

All mounting hardware included.

$155.00 Add To Cart

 wall stiffener

Wall Stiffener CM4. Eliminates flexing of the lumber on your stall walls. Secures the lumber together and adds strength to the walls

7 ft long x 1 1/2 inches wide. Pre-drilled holes every 5 inches.

$20.00 Add To Cart
